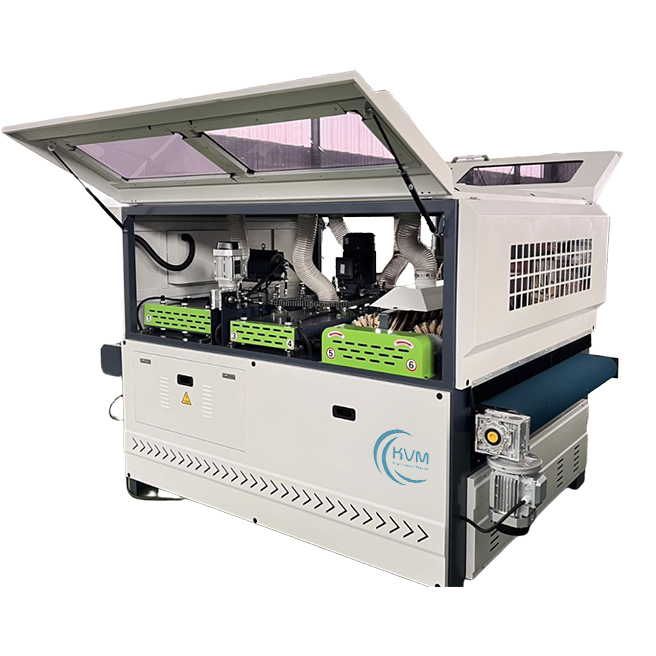

Special-shaped Polishing Machine

Technical Specifications

Model: SD1000-6SD

Machine Overall Dimensions & Weight:

270017001800 mm \ 1200kg

Maximum Workpiece Processing Thickness: 3-100mm

Minimum Workpiece Feeding Length: 320mm

Maximum Workpiece Feeding Width: 1000mm

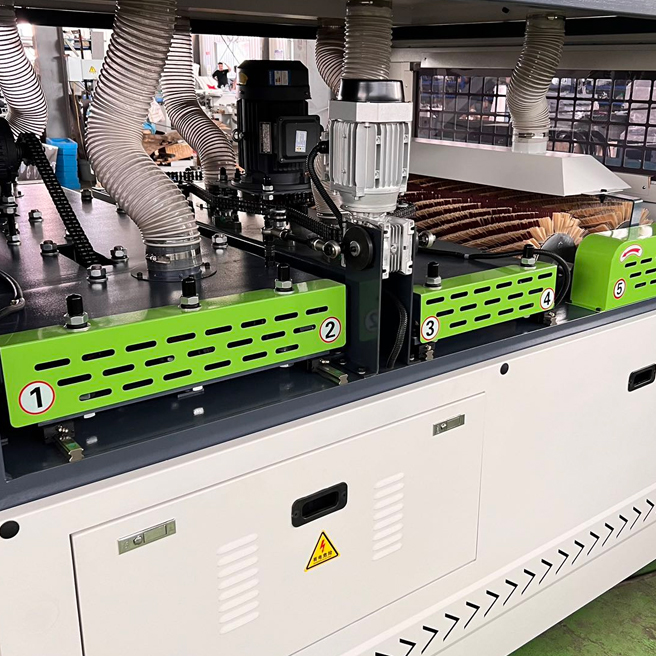

6-Group Machine Configuration:

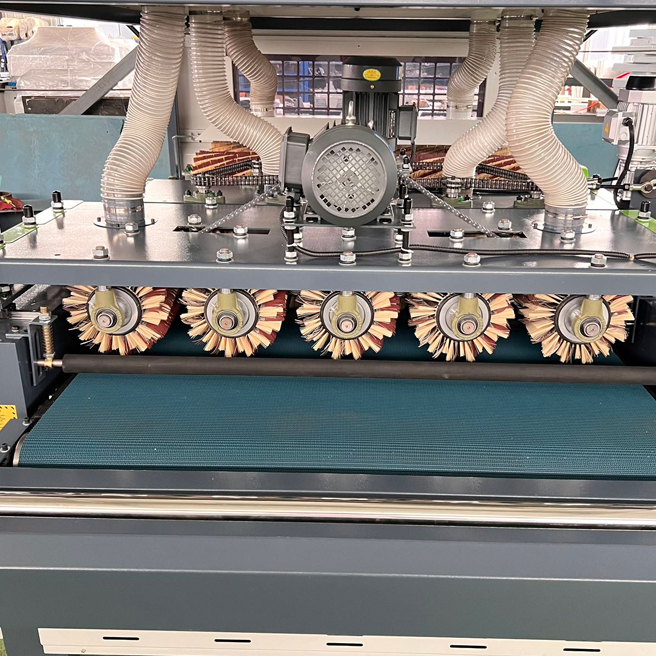

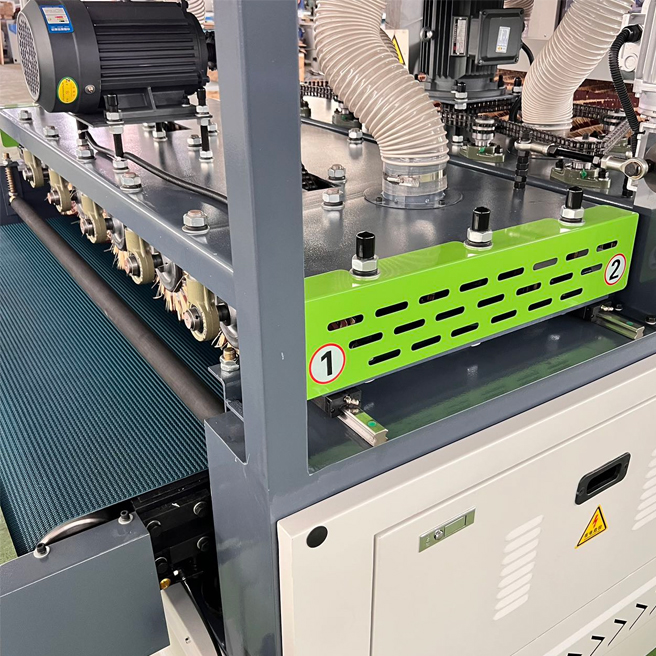

(1, 2) 2 groups of longitudinal grinding (variable frequency speed regulation)

Quantity: 7 (4 at the front, 3 at the rear)

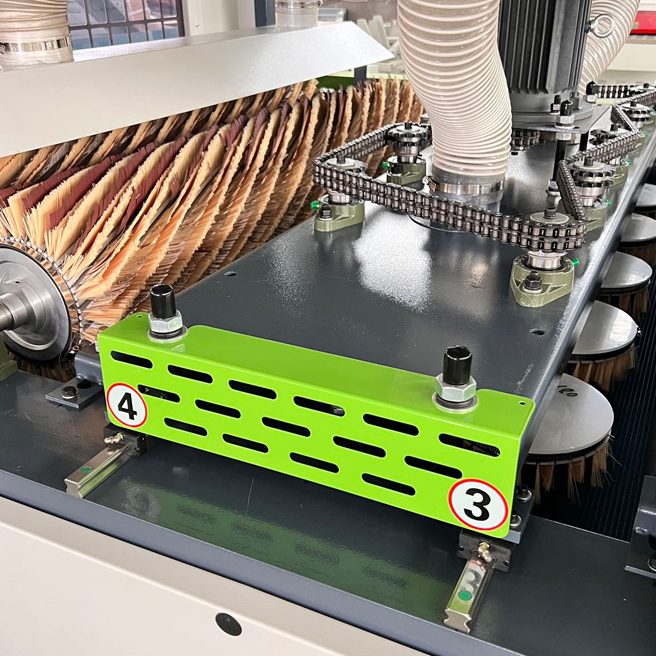

(3, 4) 2 groups of disc grinding (variable frequency speed regulation)

Quantity: 7 (4 at the front, 3 at the rear)

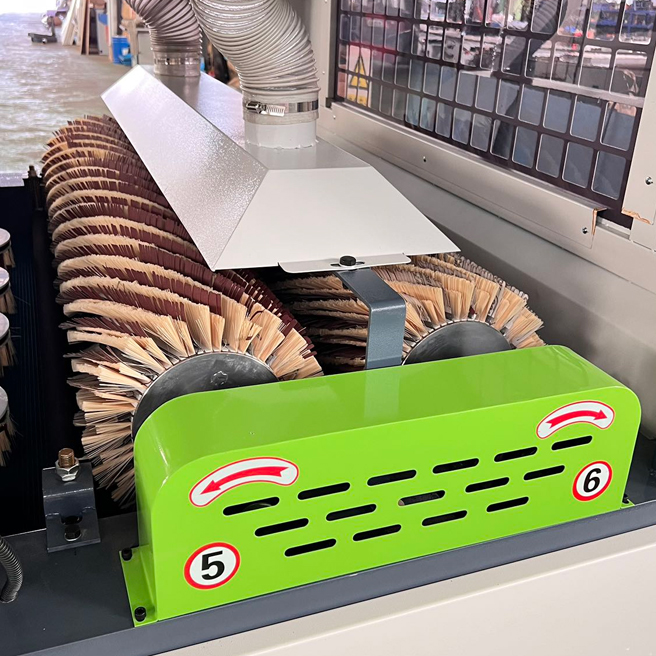

(5, 6) 2 groups of straight roller grinding (variable frequency speed regulation)

Quantity: 2 pieces

Main Motors:

Longitudinal motor: 1.5kw (1 unit)

Disc motor: 1.5kw (1 unit)

Straight roller motor: 1.5kw (2 units)

Lifting motor: 0.55kw (1 unit)

Swing motor: 0.55kw (1 unit)

Conveying motor: 1.1kw (1 unit, variable frequency speed regulation)

Total Power: 8.2kw

Voltage: 380V, 50HZ, 3-phase
