Overall Dimension:5700*700*1500mm

Machine Weight:1800kg

Working Voltage:380V/50HZ

Total Power:13kw

Panel Thickness:10~60mm

Feed Speed:18~24m/min

Minimum Width:50mm

Minimum Length:70mm

Working Pressure:0.7MPa

Edge Banding Thickness:0.3~3mm

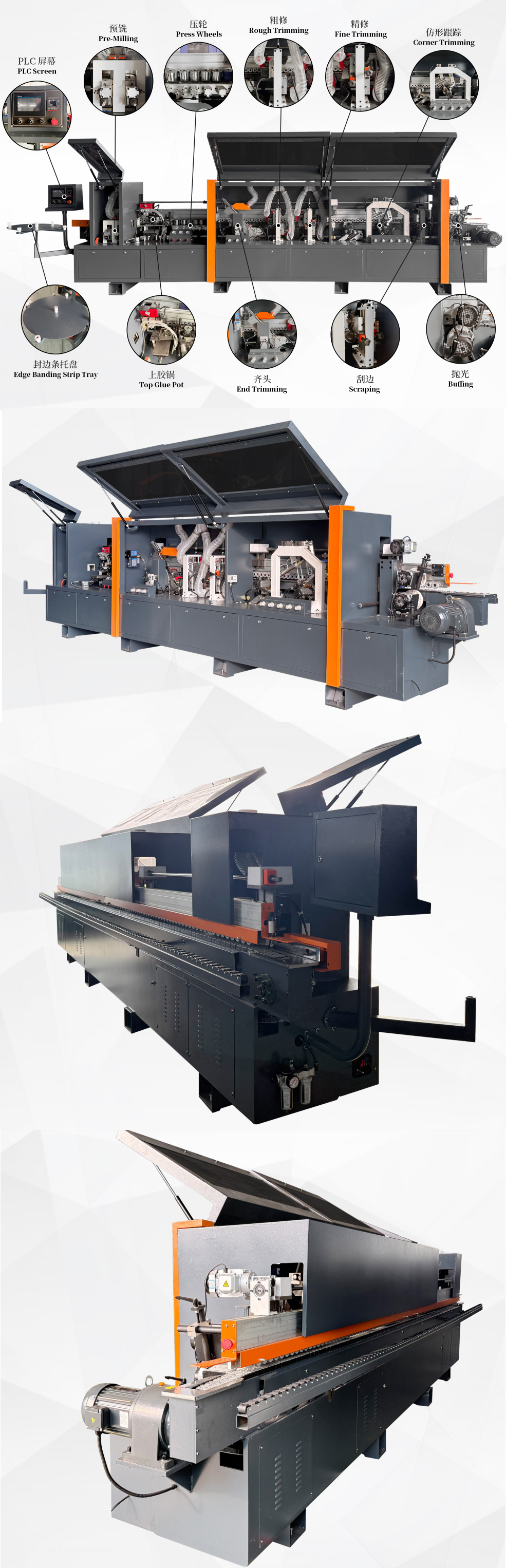

Suitable for straight edge sealing of solid wood panels, fiberboards, particleboard and otherboard workpieces. The edge sealing material can be solid wood strips PVC, Melamine, thin wood veneer, etc.

Paired with an exquisite thermometer, it is temperature sensitive and provides real-time accurate heatingtemperature.0vervoltage and undervoltage circuit protection effectively protects electronic components ofequipment and reminds customers to provide stable working power supply.

The edge banding machine has high precision and eficiency.

The end trimming device uses precise linear guide rail movement, automatic template tracking, and highfrequency high-speed motor for rapid cutting to ensure the smooth and flat cut surface.

'The fine trimming device is used to remove excess edge banding material from the top and bottom of theedge banding of the processed panel, It adopts a structure with automatic template tracking and highfrequency high-speed motor to ensure that the top and bottom parts of the edge-trimmed panel are flat andsmooth.

It can be equipped with the double glue pot pressing system, which allows for quick switching betweenlight and dark colors of adhesive, reducing the visibility of the glue thread.
